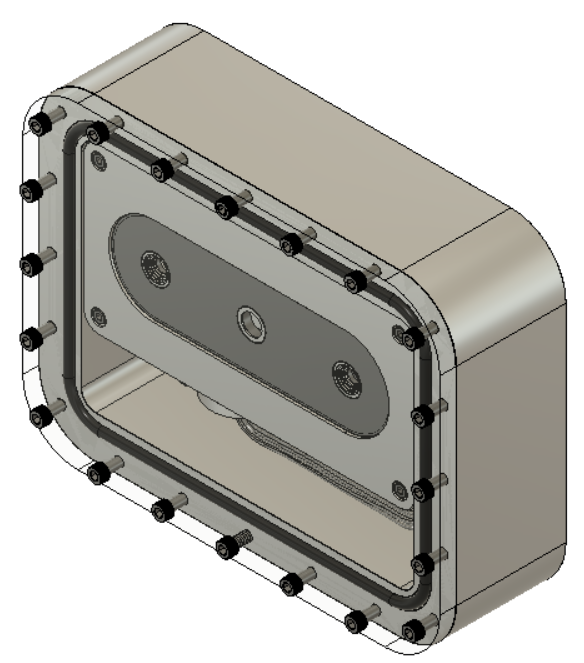

Parts list
20x 6-32 ½ screws
4x 6-32 ¼ screws
1x o ring
1x acrylic plate
1x interface mounting plate
2x m10 nut
