Intent was to design a small test piece to verify the math on our o-ring compressions and o-ring groove sizes were accurate

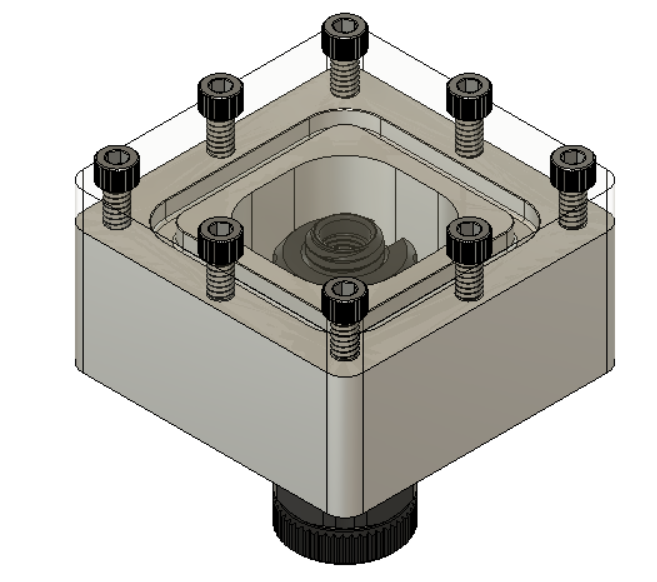

ISO view:
Top view:
Side view:

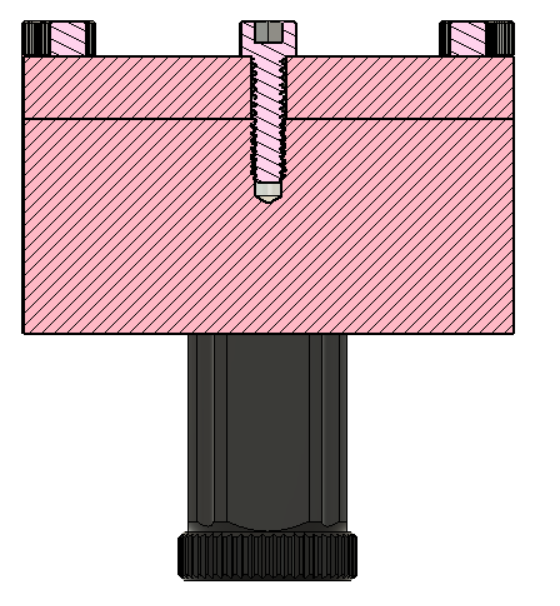

Cross section observing the screws:
Cross section observing the o-ring groove and penetrator groove:
Notice utilizing this cross section that the hole for vent needs to be more tightly toleranced than a clearance M10 hole

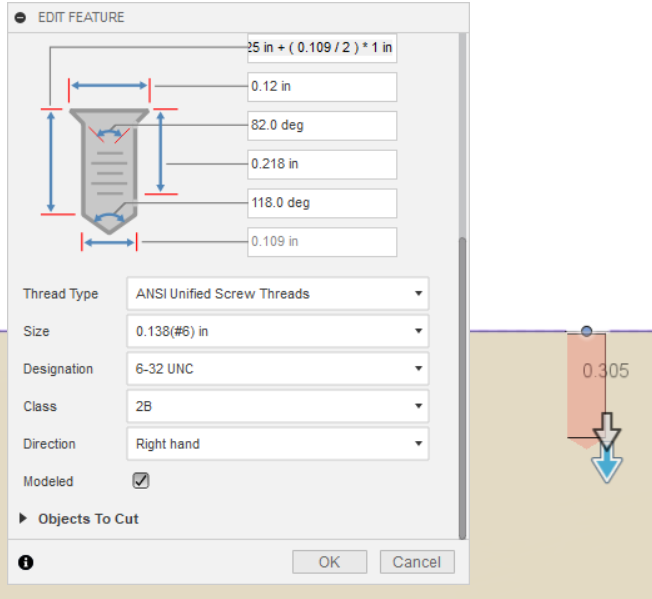

Depth of hole: 0.25 in + ( 0.109 / 2 ) * 1 in
(Add an unthreaded depth equal to 50% the hole diameter after threads or inserts)
Threaded depth:
Thread Depth Length < 2 * Diameter
Design guide here
